Package Details:

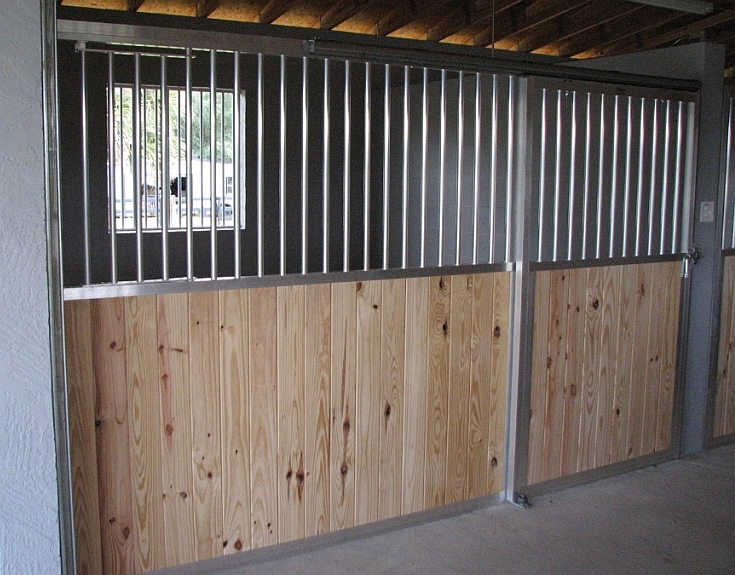

Stall Front Panel
Product Number: PNLFRNT Size: 144" Wide x 96" HighThis stall system is for horse owners looking for a traditional "panel" system that will bolt between your existing posts or bolt together without a post.
The 144" Wide x 96" High Panel Stall Front Includes:
One Sliding Stall Door (91" tall)
One Set of Heavy Duty Door Hardware
One Stall Front Grill
One Stall Wall Panel
Stall Door Details:
- Fully Welded Aluminum Door Assembly
- All Extrusions are Heavy Gauge 1/8" Wall Thickness, no rust aluminum
- Full height 91" Aluminum Vertical Square Tubing on Both Sides for Rigidity and Strength
- Through Punched Picket Holes at 3" Between Bar Spacing
- Schedule 40 Round ALUMINUM Pickets 1" in Diameter
- Reinforced Header Channels (Square tubing welded to upper channel inside.)
- Bar Top with 1" Pickets and a 3" Between Bar Spacing on Top 41"
- Multiple door top options to choose from (additional cost)
- Bottom Cap Channel
- One 8'0" Galvanized Self Cleaning Round Track
- Two Neoprene Ball Bearing Trolleys
- Two Aluminum Door Stops
- One Zinc Plated Slide Bolt Super Latch
- One Heavy Duty Adjustable Wall Mount Stay Roller
- Fasteners Included for Hardware Installation into Standard Lumber Construction
- Fully Welded Grill & Wall Assembly
- All welds are concealed for a clean, finished appearance!
- Fasteners Included for Lumber Barn Installation and Attachment
- Mounting Holes on Horizontal for Attachment
- The height of the stall Grill is 44"
- The height of the stall wall is 49"
- The height of the whole stall front is 95-3/4"
- The width of the whole stall front including the door is 144" (Custom Sizes Available for Additional Cost)
- 1" Diameter Round Pickets
- 3" Between Bar Spacing
- Add Lumber Vertically or Horizontally
- Requires two end post placements (by others)
Four Feeder Options Available (additional cost apply for the following 4 options):
- The Feeder Access Door: The Hinge-less, Latch-less, "Built In" Feeder Access Door: Lift Up and Swing to Open, Lift Up and Lower to Close. The "built in" door is unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
- The Lift Out Panel: A completely removable section of grill, within the stall front grill, that allows your horse to hang it's head into the aisle. It can be used to feed through as well! The Lift Out Panel is ALSO unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
- The Cut Out Feeder Access is an 11" x 11" opening in the stall front grill used to access horse feed bucket or bowl.
- The E Z Lift Feeder Access is the same 11" x 11" opening as the Cut Out Feeder Access but the E Z feature includes a "lift up, lower down" door for accessing the feeding container.
What you will need to provide:
- Traditional arrangement: two 6" x 6" x 12'0" posts (One post at each stall end.) When you plan for multiple stalls, please remember, stalls that are side by side will share a common post!
- Modern arrangement: Panels will bolt together and require additional hardware choice in the above attribute section.
