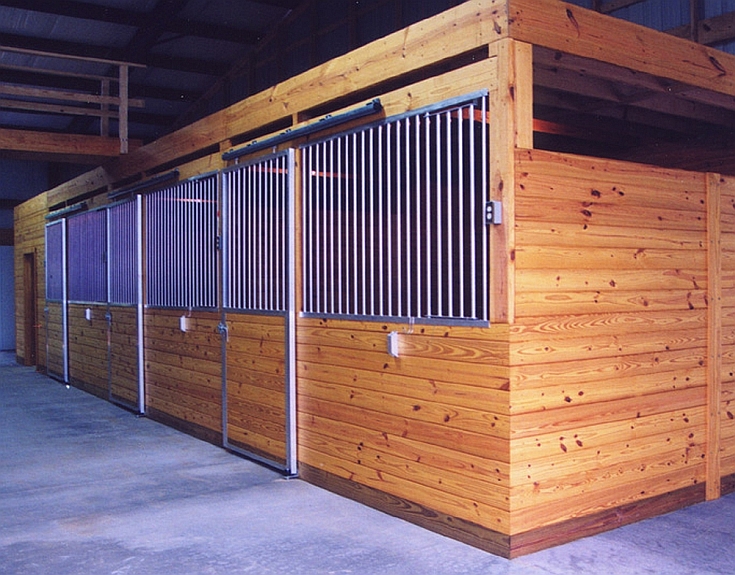

Bailey Stall Front Package 216″ Wide

One Sliding Stall Door (96" tall)
One Set of Sliding Door Hardware
One Stall Front Grill
Two 48" Receiver Channels
Four 7.5" Header Receiver Channels

Stall Door Details for Default Sliding Superstructure Stall Door:

• Fully Welded Aluminum Door Assembly
• All Extrusions 1/8" Wall Thickness
• Bar Top with 1" Pickets and a 3" Between Bar Spacing on Top 36" (Other Door Top Styles Available)
• Load Lumber from Bottom (lumber not included)
• Bottom Cap Channel
• Your door opening needs to be: 48" Wide (or smaller) x 97-1/2" High (If you don't have this much height, please call us and we will accommodate your size!)
• You will need a 7-1/2" header above the door opening to mount the door track. (If you don't have this much room, please call us and we will accommodate your situation!)
• Six Other Door Top Styles are Available to Select From (additional cost apply)

Door Hardware Included:

• One Galvanized Self Cleaning Round 8' Track with fasteners for lumber installation
• Two Neoprene Ball Bearing Trolleys
• Two Aluminum Door Stops with fasteners (for lumber installation)
• One Zinc Plated Slide Bolt Super Latch
• One Heavy Duty Adjustable Wall Mount Stay Roller with fasteners for lumber installation

Stall Front Grill Details:

• Fully Welded Grill Assembly
• All welds are concealed for a clean, finished appearance!
• No Lumber in Lower 48" of Stall Wall
• Fasteners Included for Lumber Barn Installation (no fasteners for installation into concrete)
• L or C Series Stall Grills with Mounting Holes on Horizontal for Attachment (Angle or Channel)
• 1" Diameter Round Pickets (bars)
• 3" Between Bar Spacing (a.k.a 4" on center)
• Different width/length options to choose
• Grills Over 96" Will Arrive in Two Sections
• Custom Length Grill Sizes - complimentary by calling 800-876-7706

• The Feeder Access Door: The Hinge-less, Latch-less, "Built In" Feeder Access Door: Lift Up & Swing to Open, Lift Up & Lower to Close. The "built in" door is unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
• The Lift Out Panel: A completely removable section of grill, within the stall front grill, that allows your horse to hang it's head into the aisle. It can be used to feed through as well! The Lift Out Panel is ALSO unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
• The Cut Out Feeder Access is an 11" x 11" opening in the stall front grill used to access horse feed bucket or bowl.
• The E Z Lift Feeder Access is the same 11" x 11" opening as the Cut Out Feeder Access but the E Z feature includes a "lift up, lower down" door for accessing the feeding container.

Receiver & Header Channel Details:

• Two Receiver Channels: Receiver Channel are 2 individual channels that are NOT welded or connected to the stall grill, but are separately mounted below the stall grill. Receiver Channels mount vertically to the stall end posts and, once affixed, horizontal 1-1/2" lumber (not included) is inserted into the receiver channels to construct the stall's front wall. Fasteners for attaching receiver channels to lumber are included.
• Four 7-1/2" Header Channels hold the header in place above the stall door and stall grill. Channels are separate and not welded to grills. Fasteners are included for fastening to lumber posts.

You will need to provide:

• Three - 6" x 6" x 12'0" posts (One post at each stall end and one 4' over from one end. When you plan for multiple stalls, please remember, stalls that are side by side will share a common post.)
• Nine - 2" x 6" x 216" boards (to construct the stall front wall & fill the bottom of the stall door)
• One - 2" x 8" x 216" board (header)
