Package Details:

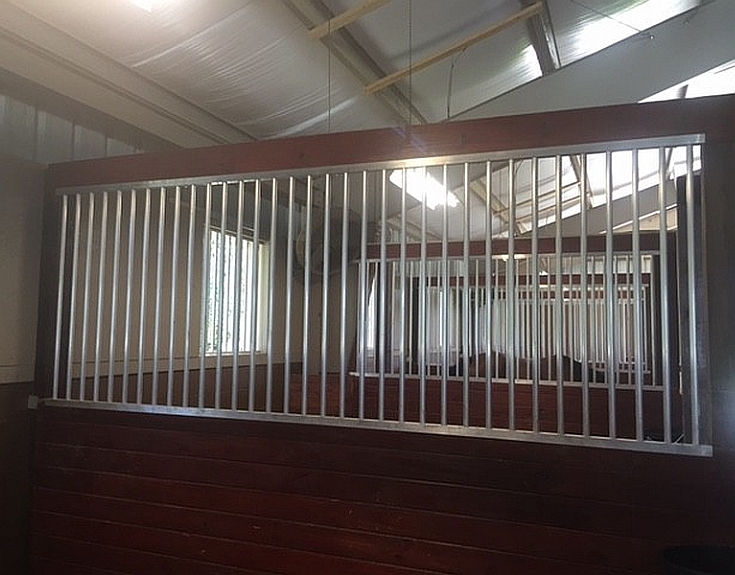

Stall Divider Package
Product Number: 8SDP10
Size: 120" Wide x 96" Tall
120" Wide x 96" High Stall Divider Package Includes:
One Stall Divider Grill
Two 48" Receiver Channels
Two 7.5" Header Receiver Channels
Two 48" Receiver Channels
Two 7.5" Header Receiver Channels
Stall Divider Grill Partition Details:
- Fully Welded 48" Tall Grill Assembly
- All welds are concealed for a clean, finished appearance!
- All Extrusions 1/8" Wall Thickness
- No Lumber in Lower 48" of Stall Wall
- L or C Series Stall Grills with Mounting Holes on Horizontal for Attachment (Angle or Channel)
- 1" Diameter Round Pickets
- 3" Between Bar Spacing
- Grills Over 96" Will Arrive in Two Sections
- Four different width/length options to choose - choose from drop down menu above
- Opening Measurement Required: The width of your opening should be the width you choose from the "Choose your Divider Grill Width" drop down menu above x 48" high
- Special Length Grill Sizes Free by calling 800-876-7706
Grill & Receiver Channel Hardware Included:
- Fasteners Included for Lumber Barn Installation (no fasteners for installation into concrete)
- Fasteners Included for Grill installation and Receiver Channel Installation
Receiver & Header Channel Details:
- Two Receiver Channels: Receiver Channel are two individual channels that are NOT welded or connected to the grill, but are separately mounted, below where you intend to place the stall grill. Receiver Channels mount vertically to the stall end posts and, once affixed, horizontal 1-1/2" lumber can be inserted into the receiver channels to construct the stall's front wall.
- Two 7-1/2" Header Channels hold the header in place above the stall divider grill.
You will need to provide:
- Two 6" x 6" x 12'0" posts (One post at each stall end. The front post will be common to the stall front and remember when you plan for multiple stalls, stalls that are side by side will share common posts.)
- Nine 2" x 6" x 120" boards (to construct the lower stall divider wall.)
- One 2" x 8" x 120" board (header to hold grill at top)
