Package Details:
Klepper Front Stall Package
Product Number: KLEPPERPKG12
Size: 144" Wide

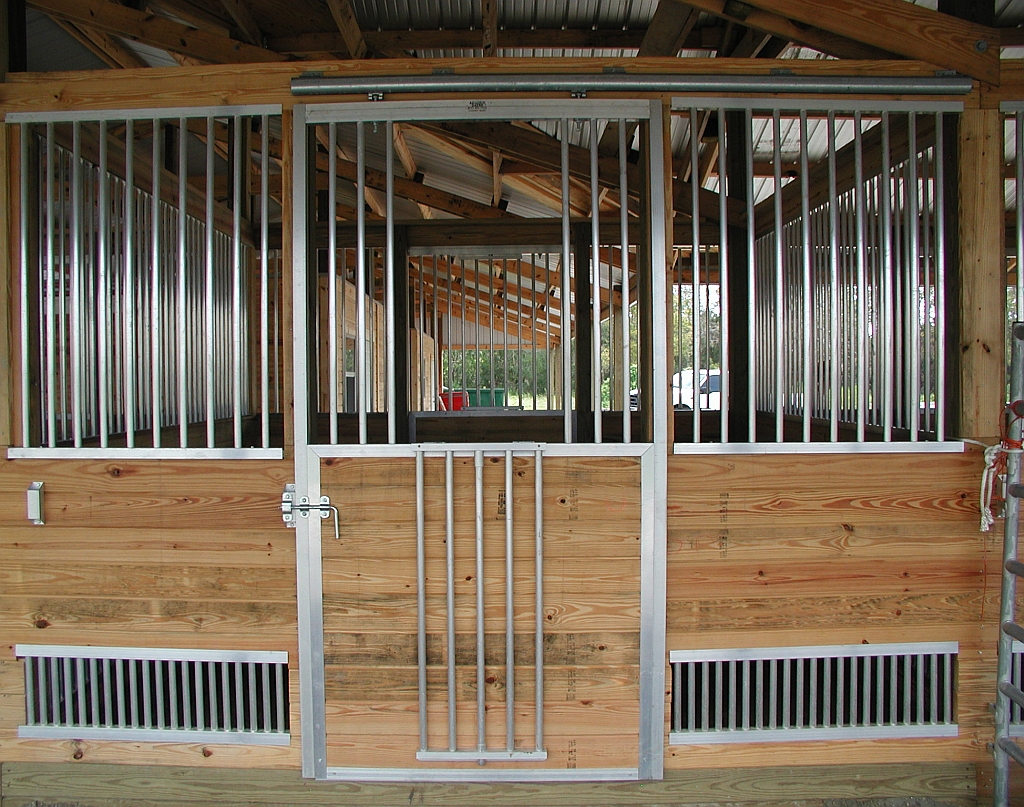

The 144" Wide x 96" High Klepper Stall Package Includes:
Sliding Superstructure Stall Door with Fold Down Top (Other Door Top Styles Available)
Two Stall Grills (for centered stall door)
Two Vent Grills (for centered stall door)
Heavy Duty Hardware Set
Stall Door Details for Default Superstructure Stall Door with Fold Down Top:
- Door Product Number: SDSOWSPRFDD
- Sliding Style Door
- Door Arrives as a Welded Assembled
- Spring Loaded Fold Down Top (Other Door Top Styles Available)
- Fold Down Top Opens to 24" Wide x 48" High
- 1" Diameter Round Pickets
- 3" Between Bar Spacing on Top 48"
- Add-your-own Lumber Bottom (lumber not included)
- Bottom Cap Channel
- Door Size is 51-1/2" Wide x 96" High
- Your Door Opening: 48" Wide (or smaller) x 97-1/2" High (If you don't have this door opening size available, give us a call, we can help!)
- You will need: 7-1/2" header above the door opening to mount the door track. (If you can't manage it, let us know by calling 800-876-7706!)
- Six Other Door Top Styles are Available to Select From (additional cost may apply)
Door Hardware Details:
- One 8'0" Galvanized Self Cleaning Round Track
- Neoprene Ball Bearing Trolley Set
- Two Aluminum Door Stops
- One Zinc Plated Slide Bolt Super Latch
- One Heavy Duty Adjustable Wall Mount Stay Roller
- Fasteners for Installation of door and grill into Lumber Construction
Stall & Vent Grill Details:
- Each Grill is "one piece" Welded Construction
- Concealed Welded for a finished appearance!
- Assembled - No Loose Pieces
- 1" Diameter Round Bars 3" between bar spacing (4" on center) Top Stall Grills
- Top Stall Grills 48" Tall
- 1" Diameter Round Bars 1" between bar spacing (2" on center) Lower Vent Grills
- Lower Vent Grills 11" Tall
- Lower Vent Grill Width is the same as the stall front grill width you choose.
- Pre-drilled Mounting Holes at top and bottom horizontal
- Fasteners for installation
- Custom Sizes by calling 800-876-7706
- Lower Wall Lumber Not Included
Feeder Options (additional cost may apply):
- The Feeder Access Door: The Hinge-less, Latch-less, "Built In" Feeder Access Door: Lift Up and Swing to Open, Lift Up and Lower to Close. The "built in" door is unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
- The Lift Out Panel: A completely removable section of Grill, within the stall front Grill, that allows your horse to hang it's head into the aisle. It can be used to feed through as well! The Lift Out Panel is ALSO unnoticeable at first glance and lends itself to giving your barn a continuous and uncluttered whole aisle appearance!
- The Cut Out Feeder Access is an 11" x 11" opening in the stall front Grill used to access horse feed bucket or bowl.
- The EZ Lift Feeder Access is the same 11" x 11" opening as the Cut Out Feeder Access but the EZ feature includes a "lift up, lower down" door for accessing the feeding container.
- Four 6" x 6" x 12'0" posts (One post at each stall end and two 4' from each other and from the center of the stall front. When you plan for multiple stalls, please remember, stalls that are side by side will share a common post!)
- Eight 2" x 6" x 144" boards (to construct the stall front wall & fill the bottom of the stall door)
- One 2" x 8" x 144" board (header)
