Package Details:

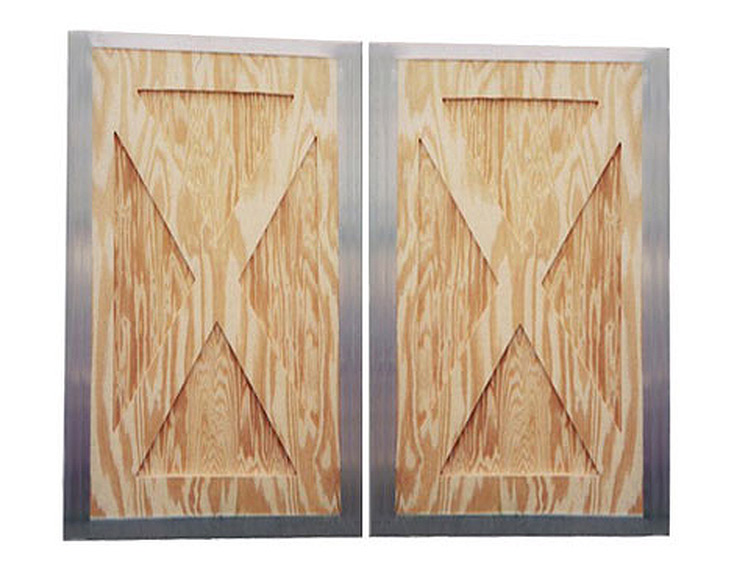

Double Crossbuck Hinged Shutter 48x48
Product Number: DSHCB4X4
Measurements: Two - 24" width x 48" height panels
Opening Measurement: 49" width x 48-1/2" height
Armour Gates offers a Double Swing Crossbuck Shutter in the time honored double "x" design. This set of two panels are 24" wide x 48" high are manufactured to be split in the center. Each shutter panel arrives fully assembled with lumber. Painting or staining door lumber portion is recommended. The Crossbuck lumber is surrounded by heavy gauge, non rusting, aluminum channels and miter cut corners. Shutters arrive with unmarred lumber fascias because all wood glue and counter sunk wood placements take place in the rear of the panel. The smooth interior surface panels provide an "edge free" surface, for those stalls housing cribbing equines. This Crossbuck Double Swing Shutter will fit your opening of 49" width by 48-1/2" high. Custom sizes are available.
When ordering shutters, you have the option of having the Crossbuck pattern on only one side of the shutter, Armour standard shutters show the pattern only when the shutter is in the closed position, if you wish to show the pattern only when the shutter is in the open position please specify by ordering "Reverse Fascia." We offer this option at no additional cost, as a courtesy and only upon request.
- COMPLETELY ASSEMBLED WITH HARDWARE
- Grille sold separately
- All edges surrounded with heavy gauge non-rusting aluminum
- Miter-cut aluminum channel for a "finished" appearance
- Crossbuck fascia lumber backed with 3/4" BC Plywood
- Crossbuck fascia on exterior of shutter
- Smooth surface panels on interiors of shutter
- Bonded with glue and wood screws at back of shutters
- Wood screws installed countersunk in critical areas for additional strength
- Painting or staining door lumber portion is recommended.
- 6" Stainless Steel T-hinges
- Stainless steel fasteners for installation into lumber structures (Concrete anchors not provided)
- Stainless steel hook & eye sets (to hold shutter open) also available (additional fee)
- Astragal also available (additional fee)
- Zinc-Plated Super Latches and Latch Receiver Plates Included
